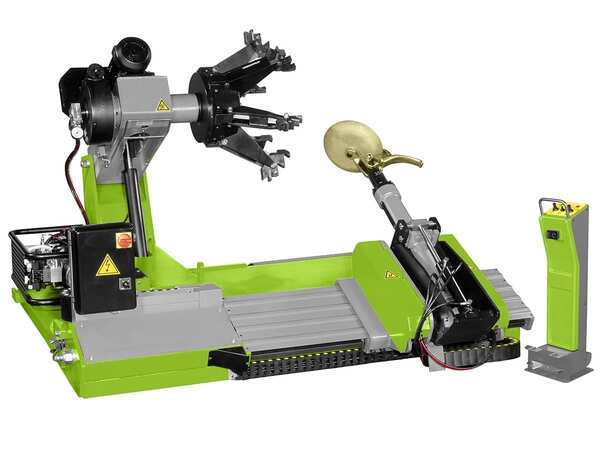

Tire Changer WS-12660
ARI-HETRA’s Model WS-12660 Heavy-Duty Electro-Hydraulic, Automatic Tire Changer easily mounts and dismounts truck, bus, tractor, agricultural, and earth-moving equipment tires.

Features

  • 6-Claw Hydraulic Chuck.
  • Electro-hydraulic/pneumatic.
  • Automatic tool arm and tool head.
  • Truck, bus, tractor, agricultural, and earth-moving equipment tires.
  • Wireless remote control.

Chuck Rotation Motor3-4 HP
Hydraulic Drive Motor1.5 HP
Rim Diameter (with extension)13 – 40 in. (14 – 60 in.)
Max Wheel Diameter112 in.
Max Wheel Width60 in.
Min. Clamp Diameter3 in.
Max Wheel Weight4,500 lbs.
Chuck Rotation SpeedsDouble 4.5 – 9 RPM
Dimensions (LxWxH)110 in. x 106 in. x 82 in.
Power220V, 3-PH, 60 Hz
