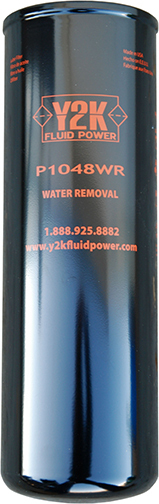

When your system demands the ultimate in fluid cleanliness,  Spin-On Filter Elements are an important line of defense in maintaining fluid quality. These single-pass filter elements can help you save on costly component replacement and minimize equipment downtime. Available in various micron and water removal sizes to fit your needs. We have filters from Y2K & Donaldson. For more information please call a Customer Service Representative.

  • Proprietary filter design ensures superior dirt retention over other elements
  • Internal O-ring gasket eliminates leakage
  • Viton Seals offer the widest chemical compatibility

Maximum Working Pressure350 PSI / 2413 kpa / 24.1 Bar
Rated Static Burst800 PSI / 5520 kPa / 55.2 bar
Maximum Flow65 GPM / 246 lpm
Operating Temperature-40F to 250F / -40C to 121C
Target ISO Cleanliness20/18/15 to 13/11/8 (depending on the element selected)
ISO Filter EfficiencyAvailable in βx ≥ 2000 7UM, 4UM and βx ≥ 1000 25UM, 10UM, and water removal
Fluid CompatibilityMineral and synthetic oil, phosphate esters, glycols, diesel fuel and water emulsions
Seals & BindingViton seals and epoxy binding
Thread Size1-3/4" - 12
Dimensions4.6 in x 14.24 in
