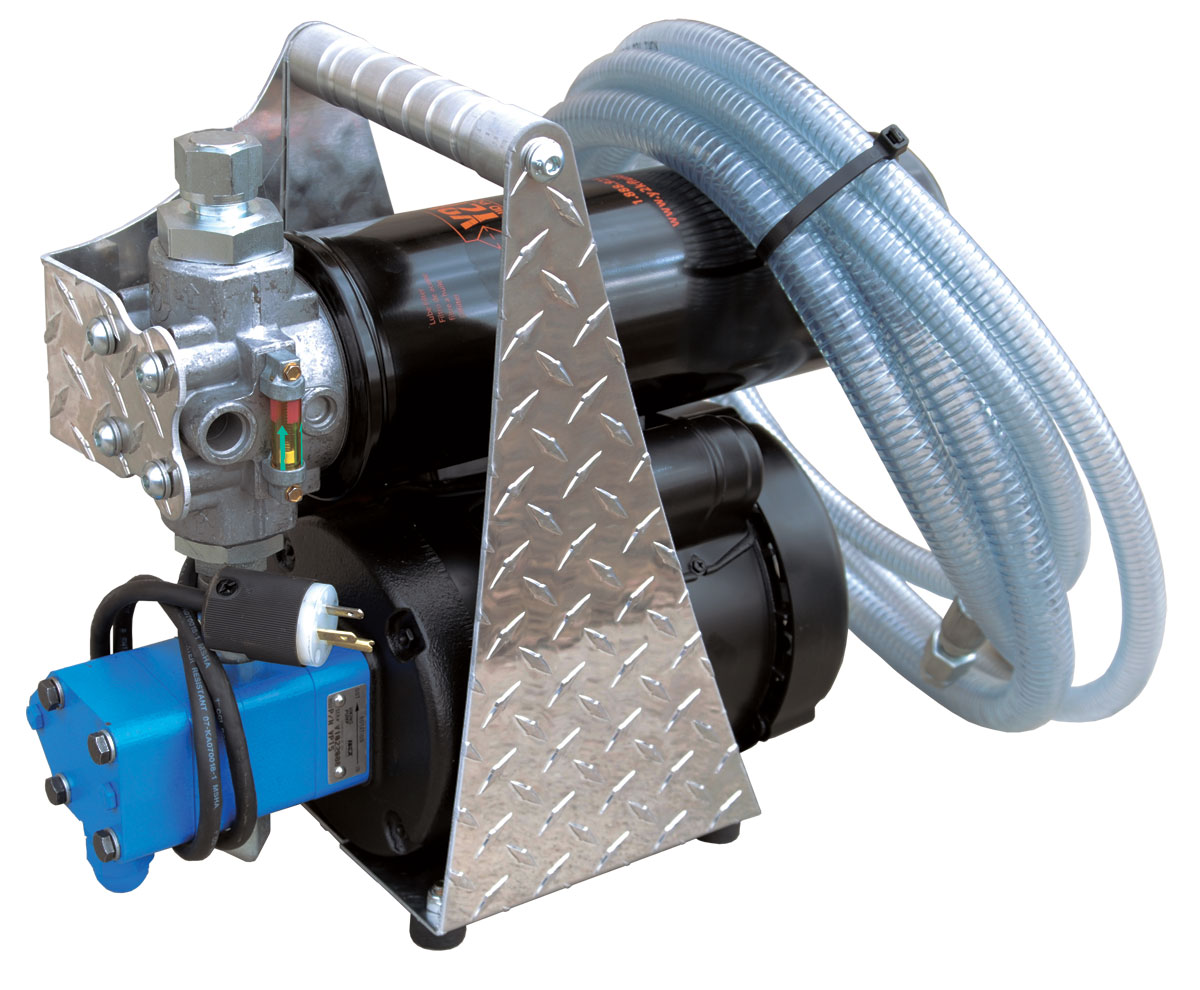

Perfect for situations with minimal storage space, the FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. This product is 100% customizable upon request. 5 Gallon Filterpak 1/2 HP Motor Part#: DFP-FP-1/2-5-66  or 5 Gallon Filterpak 1HP Motor Part#: DFP-FP-1-5-66

Typical Applications:
  • Filtering contaminated systems
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oil
  • Topping off reservoirs
  •    Dispensing new oil
FrameHeavy duty, diamond plated aluminum frame
Motor1/4HP, 1/2HP or 1 HP, 115 vac, 60 Hz
PumpHeavy duty, cast steel gear pump with 150 PSI internal pump relief; available flow rates: 1, 2, 5 and 10 GPM
Power SwitchSealed on/off power switch
Cord8ft cord
Filter HeadsMedium pressure, cast aluminum head
Filter IndicatorsSlide bar differential indicator triggers at 50 psid when elements need to be changed.
ElementsHighly efficient, 5"x14" β(c) = 2000 or 5”x 14” β(c) = 1000 filter element; various particulate and water removal elements available
Hoses7ft or 10ft, clear PVC, steel reinforced hose or hydraulic hose
Hose ConnectionsVarious quick connection options available
OptionalFlow meter
