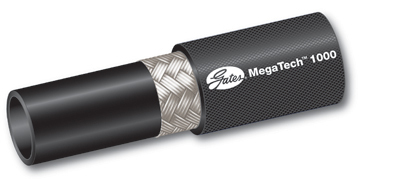

Fleet Application MegaTech® 1000 High-Temp Oil/Air Return

Fleet Application MegaTech® 1000 High-Temp Oil/Air Return
Recommended For: Air brake, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of DOT FMVSS 106-74, SAE J1402, SAE J1019 and Air Brake Hose (-4, 6, 8, 10) performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils. Not recommended for gasoline or diesel fuel applications.

NOTE: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings. See Engineering and Technical Data Section for compliance.

Gates Hydraulic Hose Catalog PDF

Tube	GTS (Gates Technical Spec.) black tube specifically compounded for temperature and chemical resistance (CPE - Type J). See Hose Stock Characteristics.
Reinforcement	One braid of high-tensile steel wire.
Cover	Oil and mildew resistant, textile braid, impregnated with synthetic rubber.
Temperature Range	Petroleum-base fluids: -40°F to +300°F (-40°C to +149°C). Phosphate esters fluids as recommended by the fluid manufacturer, but within a range of -40°F to +212°F (-40°C to +100°C). For water emulsions see Temperature Limits Table.
Coupling Recommendation	GL Couplings (-12, -16 and -20), MegaCrimp® Couplings
