Low Pressure GMV

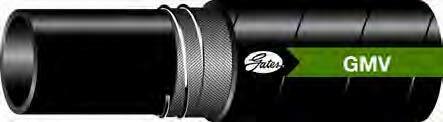

Low Pressure GMV Global MegaVac® Return Line and Suction Hose
Recommended For: Petroleum and water-base hydraulic fluids in suction lines or in low pressure return lines. Meets or exceeds requirements of SAE100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS with use of HeatGuard™ High Temp Sleeve. (Meets Flame Resistance Acceptance Designation "MSHA 2G"

Low Pressure GMV Global MegaVac

Gates Hydraulic Hose Catalog PDF
TubeBlack, synthetic rubber is specifically designed for resistance to high temperatures (Nitrile - Type C). See Hose Stock Characteristics.
ReinforcementDouble spiral textile (braid for -12, -16 and -20) reinforced with a helical spiral-wire to prevent collapse.
CoverBlack synthetic rubber is oil and abrasion resistant (Neoprene - Type A). See Hose Stock Characteristics.
Temperature Range-40°F to +275°F (-40°C to +135°C) constant and +300°F (+149°C) intermittent (up to 10% of operating time). For water emulsions see Temperature Limits Table.
Coupling RecommendationGL Couplings MegaCrimp®, Couplings (-12 through -20)
